01 / ACTIVATION

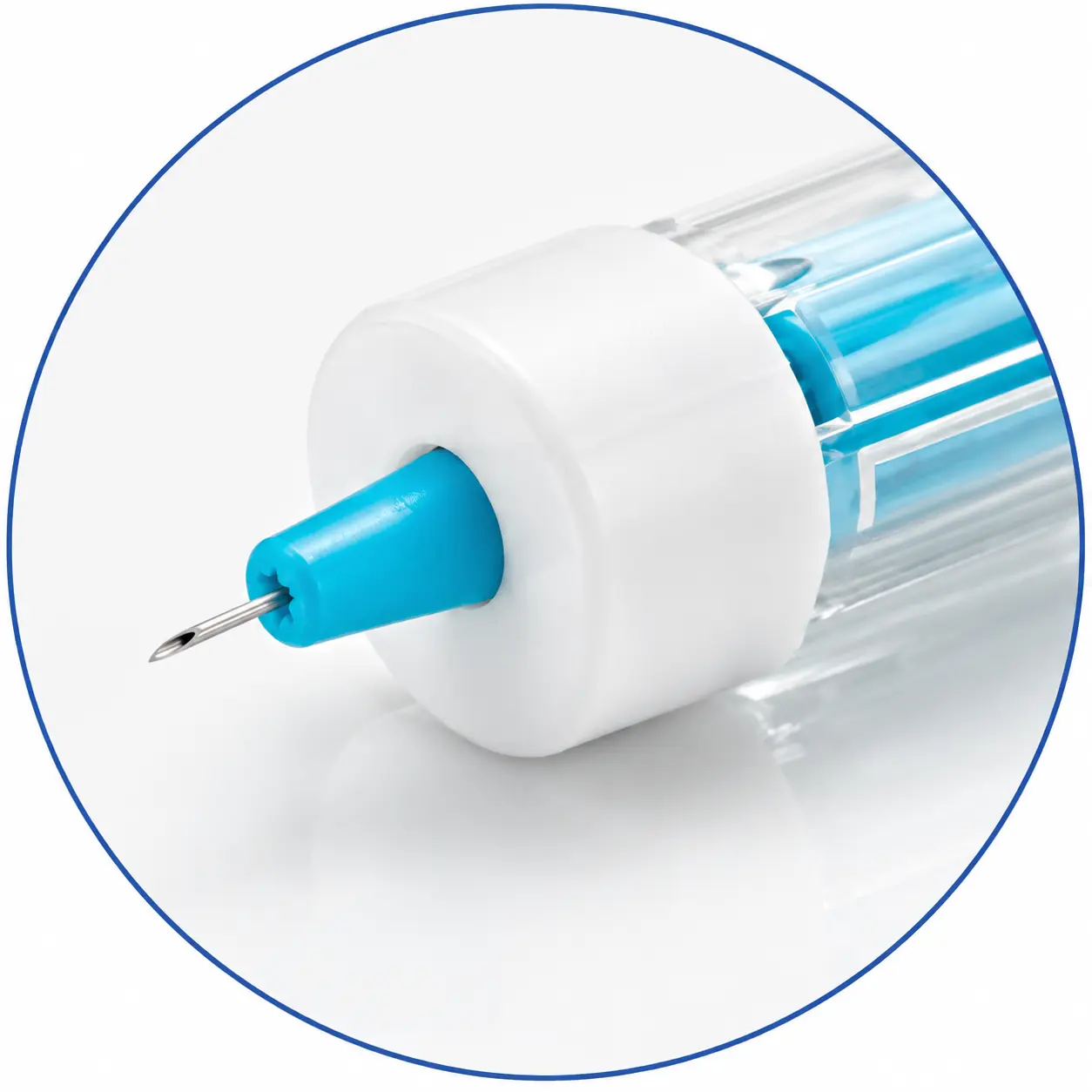

Pre-Loaded Pressure Activation
The T-Type device is supplied pre-loaded. After the protective cap is twisted and removed, the contact end is positioned against the sampling site and pressed to activate.
PRESSURE-ACTIVATED SAFETY LANCETS

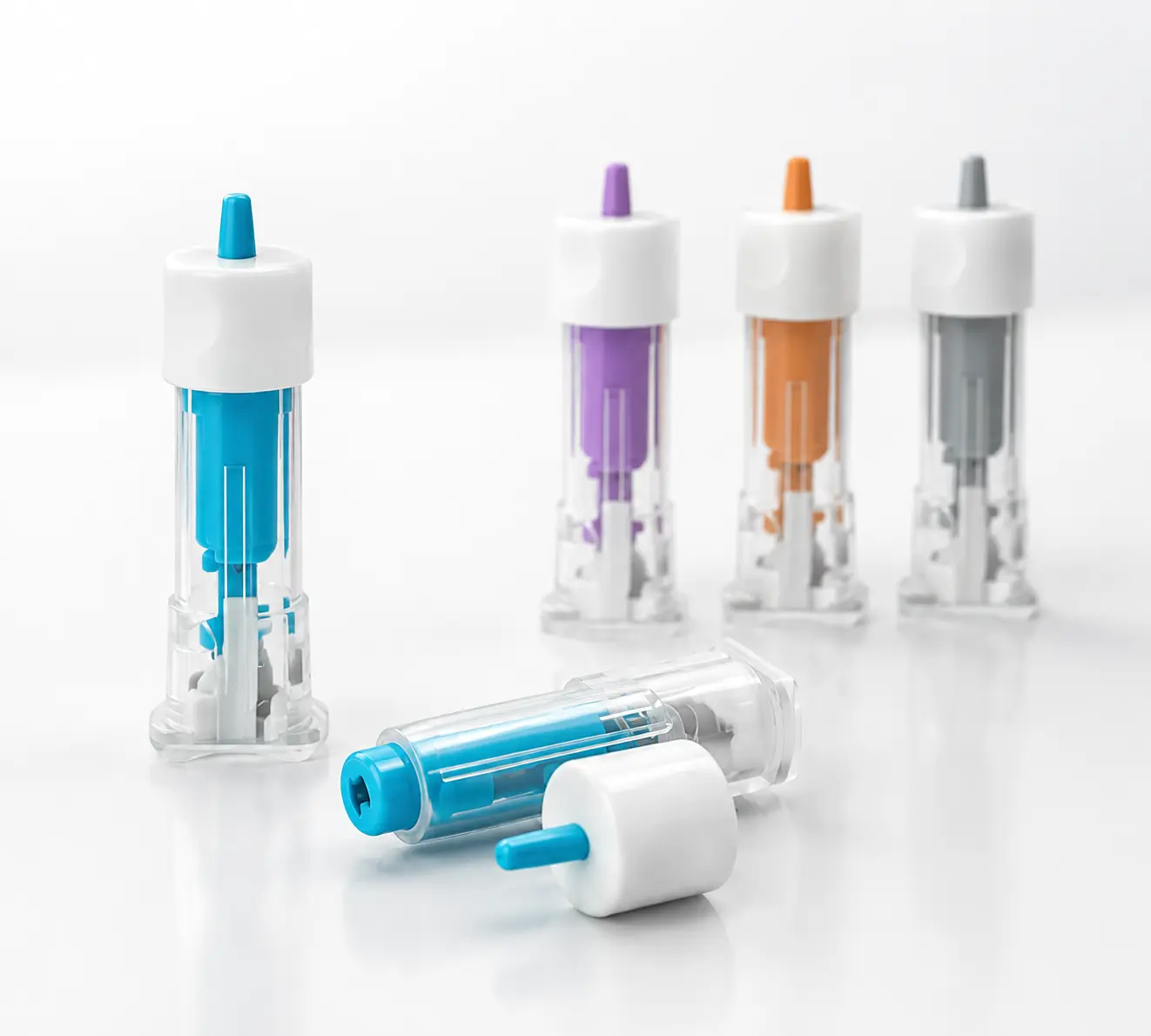

T-Type Safety Lancets with Automatic Needle Retraction
Sterile single-use safety lancets for capillary blood sampling. T-Type models are pre-loaded and pressure activated, with the needle shielded before use and retracted back into the device body after activation.
01
Pressure Activated
Pre-loaded contact activation without a separate lancing device.
02
Automatic Retraction
Spring-loaded mechanism returns the needle into the device after activation.
03
Gamma Sterilized
Current manufacturer T-Type information specifies gamma irradiation sterilization.
PUBLISHED REFS
5 T-Type SKUs
21G, 23G, 28G and 30G
NEEDLE LENGTH
1.8 / 2.4 mm
Published as needle length by REF
ACTIVATION
Pressure Activated
Pre-loaded standalone safety lancet
PACKAGING
100 / Box · 1,000 / Case
Published T-Type case configuration
EXACT-SKU ORDERING DATA
T-Type Safety Lancet Specifications by REF
Order the T-Type family by exact REF, gauge and published needle length. The 1.8 mm and 2.4 mm values below are manufacturer-listed needle lengths, not automatically equivalent to controlled skin penetration depth.
| REF / SKU | Gauge | Needle Length | Sterilization | Activation | Qty / Box | Qty / Case |
|---|---|---|---|---|---|---|
| SL-30-18T | 30G | 1.8 mm | Gamma irradiation | Pressure activated | 100 | 1,000 |
| SL-28-18T | 28G | 1.8 mm | Gamma irradiation | Pressure activated | 100 | 1,000 |
| SL-23-18T | 23G | 1.8 mm | Gamma irradiation | Pressure activated | 100 | 1,000 |
| SL-21-18T | 21G | 1.8 mm | Gamma irradiation | Pressure activated | 100 | 1,000 |
| SL-21-24T | 21G | 2.4 mm | Gamma irradiation | Pressure activated | 100 | 1,000 |
BUYER CONTROL
Use the full REF in quotations, artwork and purchase orders so gauge,
needle length and pack configuration remain tied to the same SKU.
T-TYPE PRODUCT DIFFERENCES
What Defines the T-Type Safety Lancet

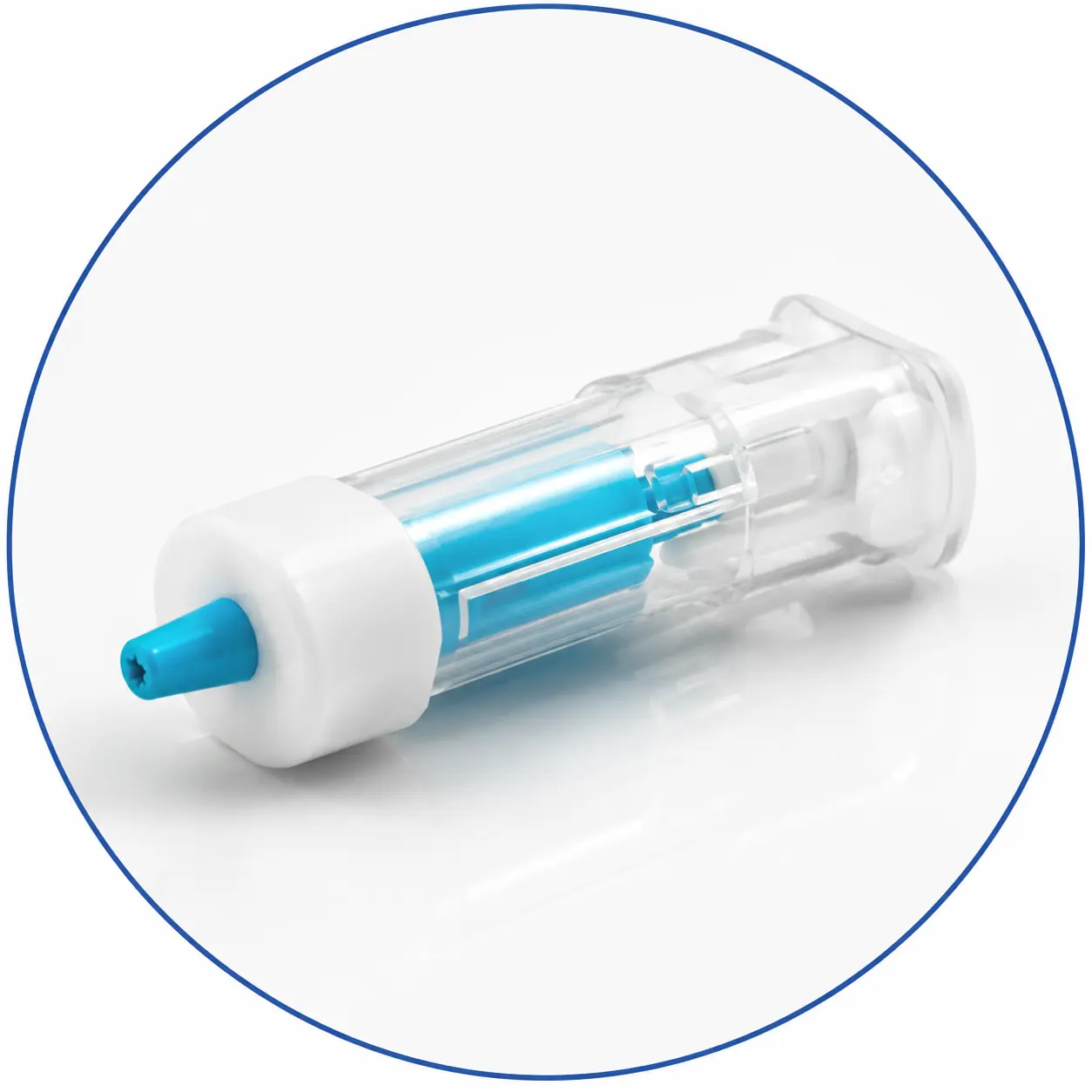

The T-Type format combines pressure activation, post-activation needle retraction, a shielded needle architecture and gamma-irradiation sterilization.
02 / POST-USE SAFETY
Automatic Needle Retraction

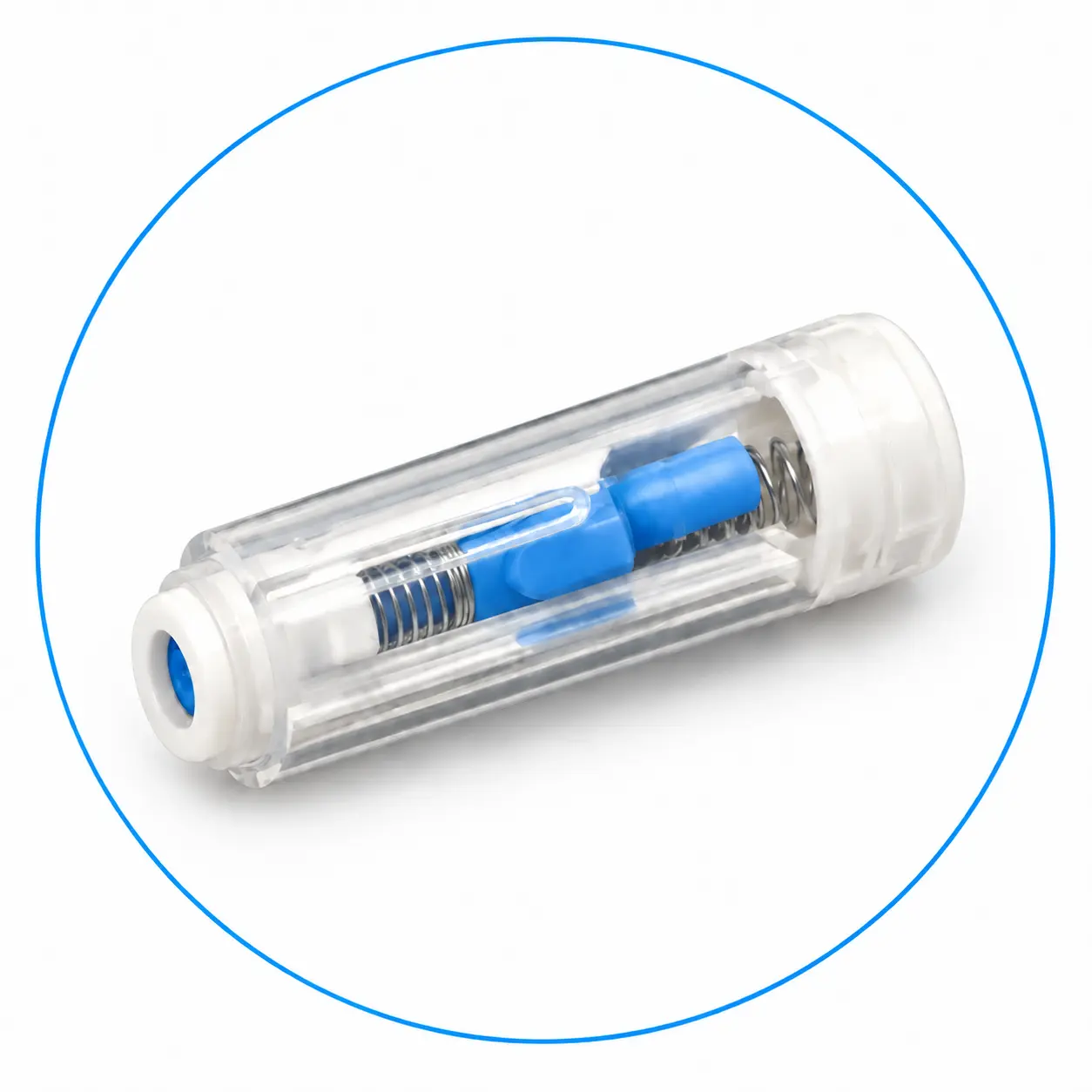

U.S. model records describe a spring-loaded mechanism that drives the needle forward and then withdraws it back into the device shield after activation.
03 / STERILIZATION

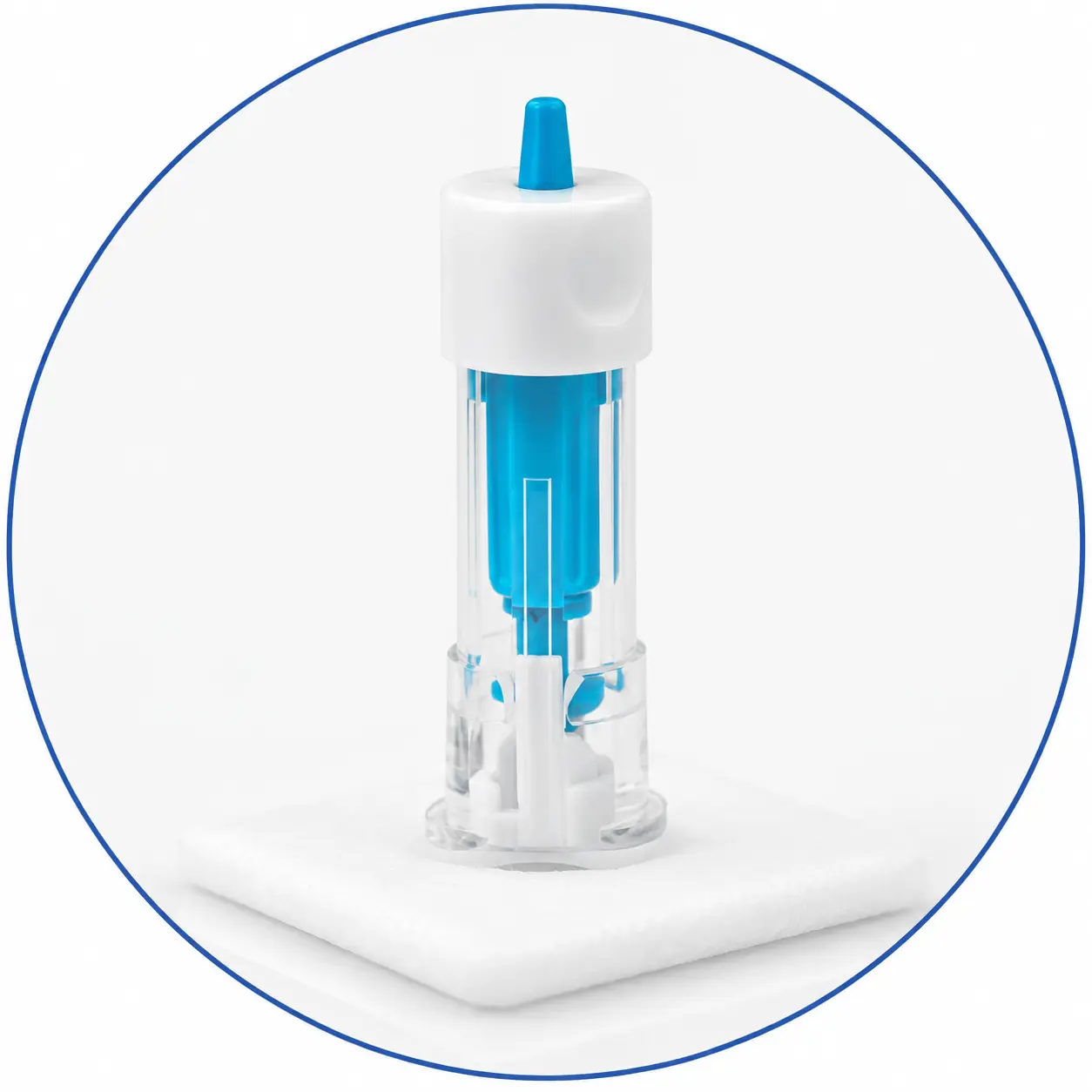

Gamma Irradiation Sterilization
Current manufacturer T-Type product information identifies gamma irradiation as the sterilization method for the published family.
04 / NEEDLE GEOMETRY

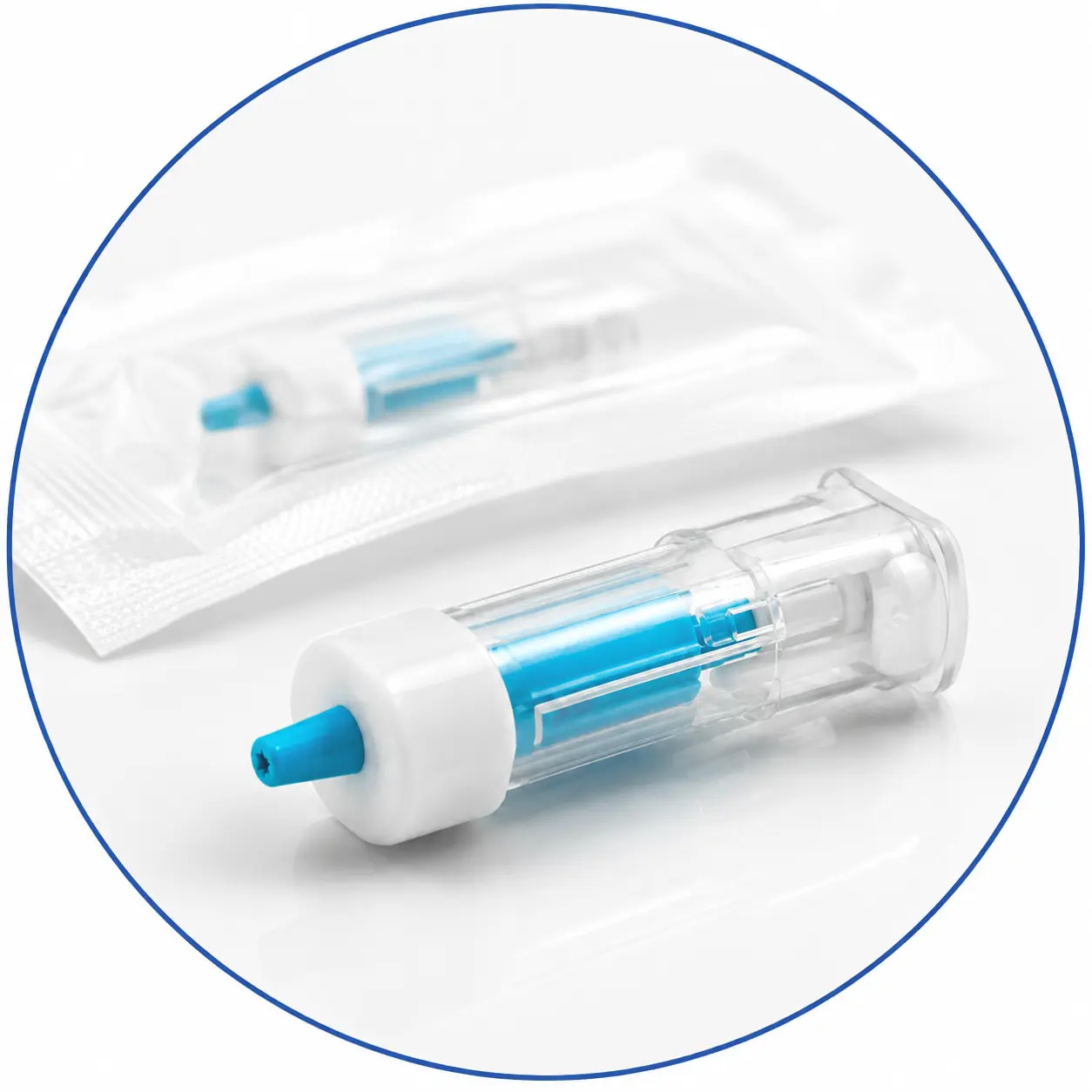

Tri-Bevel Needle Tip
The manufacturer describes a tri-bevel needle-tip geometry across the T-Type family while gauge and needle length remain the key ordering controls.
PRESSURE-ACTIVATION WORKFLOW
From Cap Removal to Sample Collection & Disposal
T-Type is a pre-loaded standalone safety lancet. The protective cap is twisted and removed before use; pressure at the sampling site activates the mechanism, and the needle automatically returns into the shield after puncture.
01

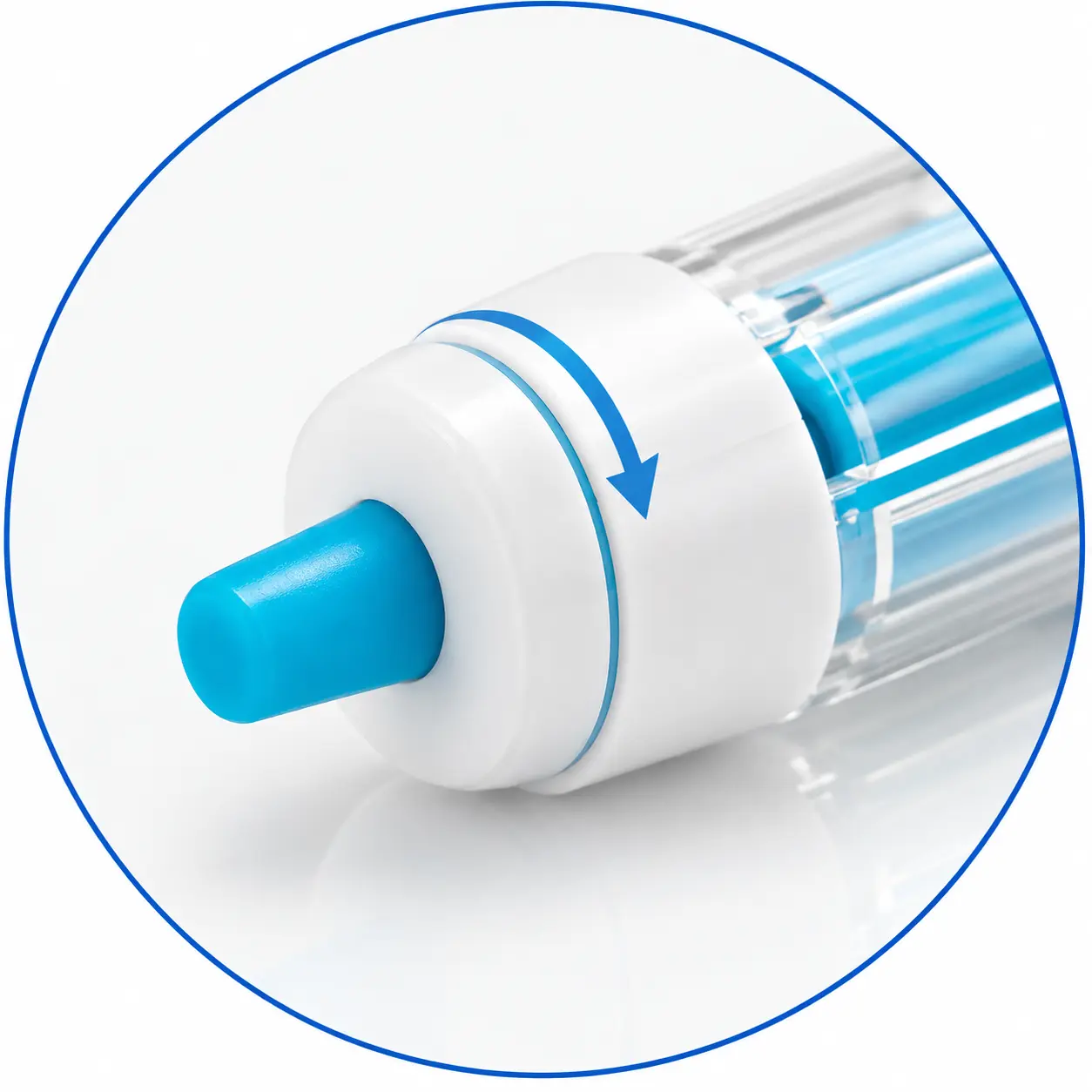

Twist & Remove the Protective Cap
Twist the protective cap as shown in the current IFU, then pull it away from the pre-loaded device.
02
Position the Contact End
Place the contact end firmly against the intended capillary sampling site.
03
Pressure Activate
Press the device against the sampling site to trigger puncture. The needle automatically returns into the shield after activation.
04
Remove the Device & Collect the Blood Sample
Lift the device away and collect the capillary blood sample according to the applicable sampling procedure.
05
Dispose After Single Use
Discard the used safety lancet in an appropriate sharps-disposal container according to local procedures.
MODEL-LEVEL IDENTITY
Selected Model-Level UDI Records
Selected T-Type models have current U.S. GUDID records under the Verifine brand. The records shown below are not a complete T-Type family list; match each Primary DI to the exact model string and current product label used for the quoted configuration.
SL-28-18T
00850011833452
SL-23-18T
00850011833377
SL-21-18T
00850011833285
SL-21-24T
00850011833315
Primary DI values shown above are selected model-level U.S. records and should be matched against the exact current label before use in procurement systems.
Documents Available for Review
Product Specification
Exact REF, gauge, manufacturer-listed needle length, activation format and packaging configuration.
Instructions for Use
Cap removal, pressure activation, post-use needle state and disposal instructions.
Sterilization Information
Applicable gamma-irradiation and sterile-barrier records for the quoted product configuration.
Packaging & Label Files
Unit packaging, case quantity, label sample, barcode and private-label artwork where applicable.
Regulatory & UDI Records
Applicable manufacturer regulatory references and model-level UDI records for the target market.
T-TYPE SAFETY LANCET RFQ
Request T-Type Safety Lancet Bulk Pricing
Send the required REF, gauge × needle length, quantity, destination, packaging or private-label requirements and document needs for a SKU-specific quotation.
