01 / Family definition
5-Bevel Needle Tip
All nine rows on this page are identified as 5-bevel variants through the published Q inside-code pairing.
5-Bevel Tip Product Family
5-Bevel Insulin Pen Needles
Nine published REF and inside-code pairs cover 29G–32G and 4–12 mm. The listed configurations use a 5-bevel needle tip and a sterile, individually wrapped presentation with 100 pieces per box.
The 5-bevel tip is the defining difference on this page.
Match the REF, gauge × length, intended pen model and U.S.-market file set before quotation.
Published references9 REF pairs
REF plus Q-suffix inside code
Published range29G–32G
0.23–0.33 mm nominal diameters
Length range4–12 mm
4, 5, 6, 8 and 12 mm options
Unit presentation100 pcs / box
Sterile and individually wrapped
Exact Published References

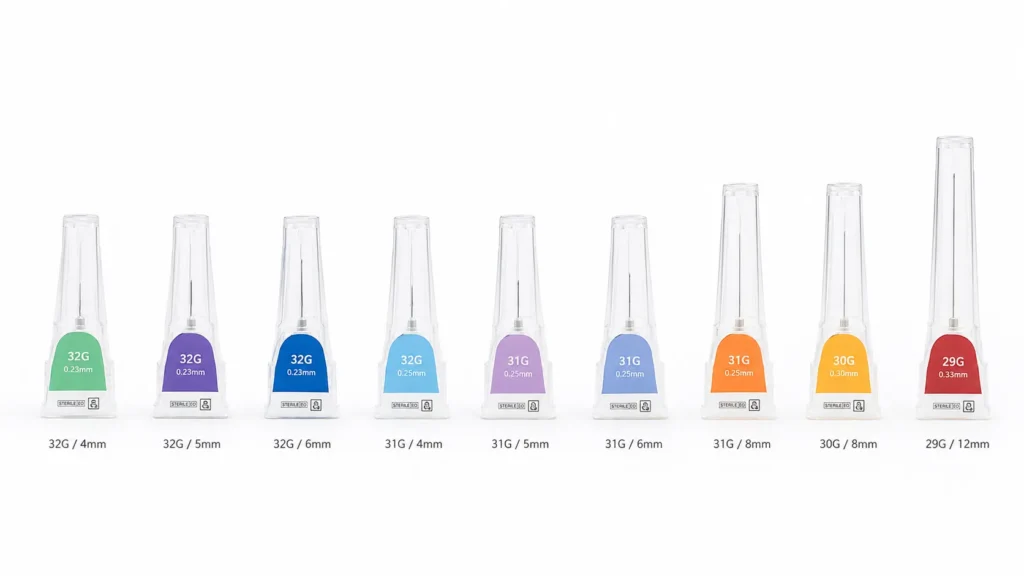

5-Bevel SKU Matrix
Use each row as one controlled selection. The REF, Q inside code, gauge and length must remain paired.
| REF | Inside code | Gauge / diameter | Length | Color ID | Presentation | Box qty. |
|---|---|---|---|---|---|---|
| IPN-32-4 | IPN-32-4Q | 32G / 0.23 mm | 4 mm | Light green | Sterile, individually wrapped | 100 pcs |
| IPN-32-5 | IPN-32-5Q | 32G / 0.23 mm | 5 mm | Purple | Sterile, individually wrapped | 100 pcs |
| IPN-32-6 | IPN-32-6Q | 32G / 0.23 mm | 6 mm | Blue | Sterile, individually wrapped | 100 pcs |
| IPN-31-4 | IPN-31-4Q | 31G / 0.25 mm | 4 mm | Light blue | Sterile, individually wrapped | 100 pcs |
| IPN-31-5 | IPN-31-5Q | 31G / 0.25 mm | 5 mm | Light purple | Sterile, individually wrapped | 100 pcs |
| IPN-31-6 | IPN-31-6Q | 31G / 0.25 mm | 6 mm | Light blue | Sterile, individually wrapped | 100 pcs |
| IPN-31-8 | IPN-31-8Q | 31G / 0.25 mm | 8 mm | Orange | Sterile, individually wrapped | 100 pcs |
| IPN-30-8 | IPN-30-8Q | 30G / 0.30 mm | 8 mm | Orange | Sterile, individually wrapped | 100 pcs |
| IPN-29-12 | IPN-29-12Q | 29G / 0.33 mm | 12 mm | Red | Sterile, individually wrapped | 100 pcs |
Published scope: the nine REF/inside-code pairs, nominal diameters, lengths, color identification, sterile individually wrapped presentation and 100-piece box quantity reproduce the 5-bevel product information reviewed September 10, 2026. Carton quantity, MOQ, stock and lead time remain quotation-specific.
Page-Specific Product Difference
What the 5-Bevel Name Establishes
The published family distinction is the multi-bevel tip. The other construction statements below require the selected REF and its controlled specification.
02 / Controlled by REF
Silicone Lubricant Coating
The family page identifies a silicone-lubricated needle surface. Process and acceptance details belong to the controlled product file.
03 / Controlled by REF

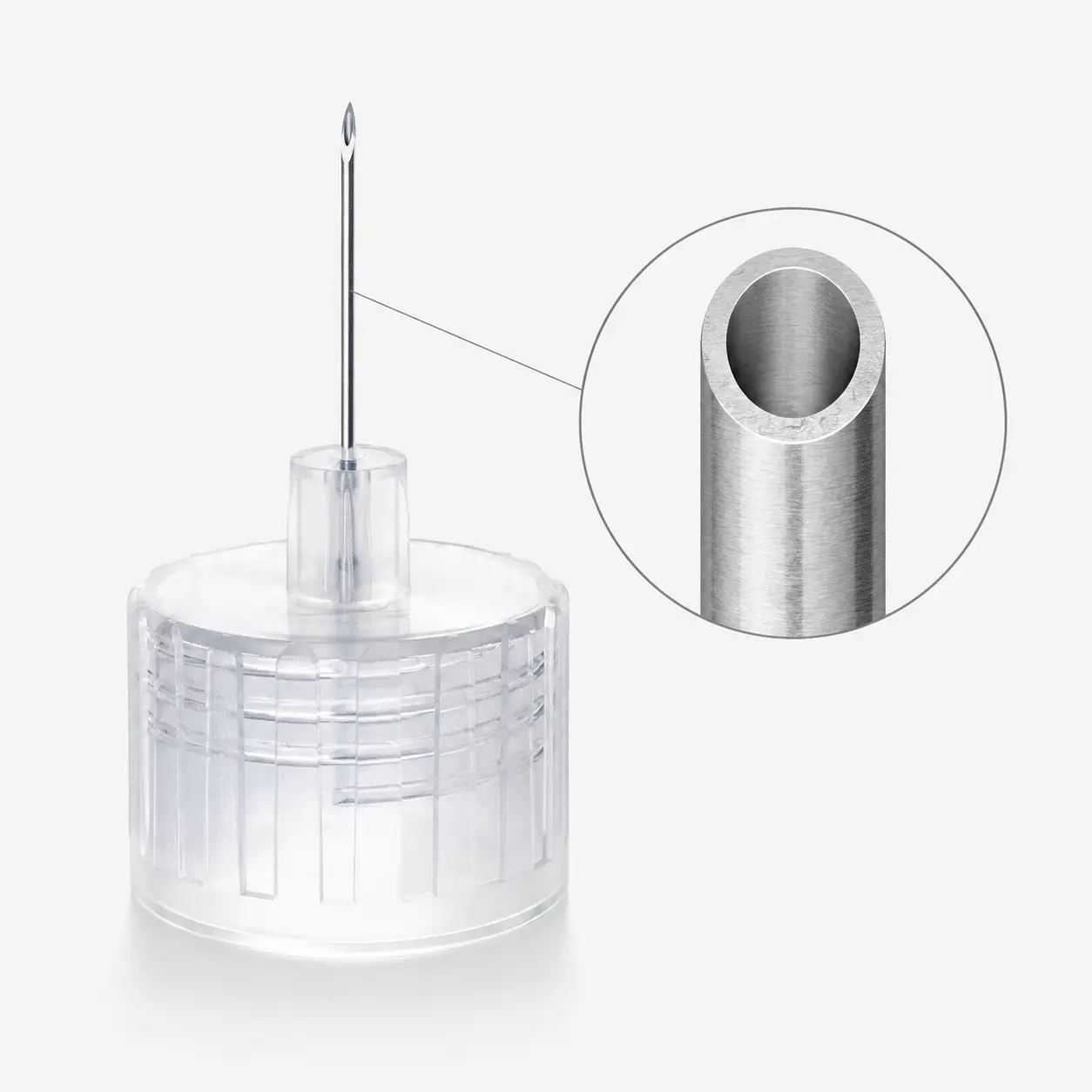

Thin-Wall Construction
Thin-wall construction is published for selected configurations. Do not infer the same lumen dimensions across every REF.
04 / Controlled by REF

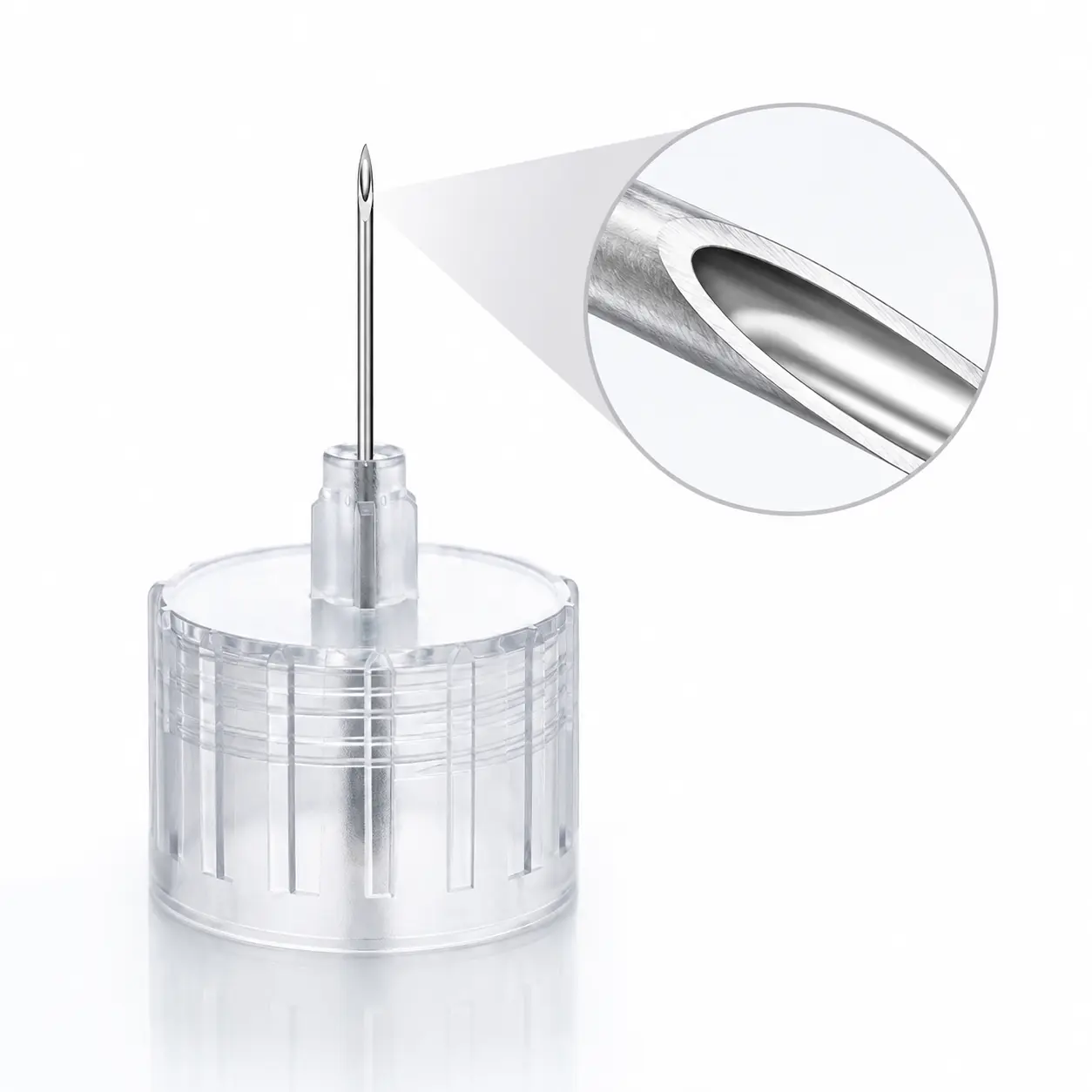

Inner Cannula Electropolishing
Inner-cannula electropolishing is a published construction statement. Finish requirements and inspection records must match the quoted REF.
Adjacent Tonmit Families
Compare the Published Product Difference
Choose the family by its documented design distinction, then confirm the exact size and intended threaded pen injector.
| Family | Published distinction | Published range | Identifier pattern | Review page |
|---|---|---|---|---|
| Standard | Standard threaded pen-needle family | 29G–34G · 4–12 mm | IPN item code | Standard → |
| 5-Bevel | 5-bevel needle-tip geometry | 29G–32G · 4–12 mm | IPN REF + Q inside code | Current page |
| Plus | Flat base, wider outer cover and wider inner shield | 30G–34G · 4–8 mm | NPN item code | Plus → |
| Plus 5-Bevel | Plus handling structure with 5-bevel tip | 30G–32G · 4–8 mm | NPN REF + Q inside code | Plus 5-Bevel → |
Compatibility control: family name, cap color, gauge and length do not establish compatibility. Match the intended pen model to the selected REF and current compatibility information.
Buyer Evidence and Commercial Terms
Match the Files to the Quoted REF
U.S.-market configurations are supplied to meet applicable FDA requirements. The usable evidence set must identify the legal manufacturer, exact product reference and applicable market.
Published on this page
Buyer-Usable SKU Data
- Nine REF and Q inside-code pairs
- Gauge, nominal diameter and needle length
- Color identification by listed row
- Sterile, individually wrapped presentation
- 100 pieces per box
Request by exact REF
Product and Regulatory Files
- Current specification sheet or product drawing
- Unit, box and available carton packaging images
- Current label sample with applicable UDI, lot and expiry fields
- Sterile-barrier and sterilization statement or available validation index
- Applicable FDA, quality and market-specific record index
File identity check
Before relying on a specification, label sample or regulatory record, match its legal manufacturer, REF or model, document number or version, issue or expiry date and applicable market. Availability is confirmed in writing for the quoted configuration.
| Purchasing field | Current page status | How it is confirmed |
|---|---|---|
| Unit pack | 100 pcs / box | Published for the nine listed configurations |
| Carton quantity | RFQ confirmation | Match the REF, packaging route and destination |
| MOQ and samples | RFQ confirmation | Review stock, customization and requested quantity |
| Inventory location | SKU-specific confirmation | Written U.S. inventory or factory-supply response |
| Lead time | RFQ confirmation | Destination, inventory and transport route |
| Compatibility and files | Exact-REF review | Match the legal manufacturer, model, document version and market |
FDA category reference
FDA product code FMI identifies hypodermic single-lumen needles as Class II under 21 CFR 880.5570. The quoted product record still must match the legal manufacturer and exact REF.
Wholesale Inquiry
Request 5-Bevel Pen Needle Pricing
Send one complete requirement. We will match the REF, confirm commercial terms and identify the available compatibility, labeling and regulatory file set.
Response target: initial acknowledgment within 1–2 business days.
