Plus Handling Structure

Plus Insulin Pen Needles

The Plus family is identified by its flat needle base, wider outer cover and wider inner shield. The 10 item codes currently published on this page cover 30G–34G and 4–8 mm sizes.

Plus is a component configuration, not a compatibility claim. Match the item code, intended pen model, unit label and requested file set before quotation.
Request Bulk Pricing Review SKU Matrix

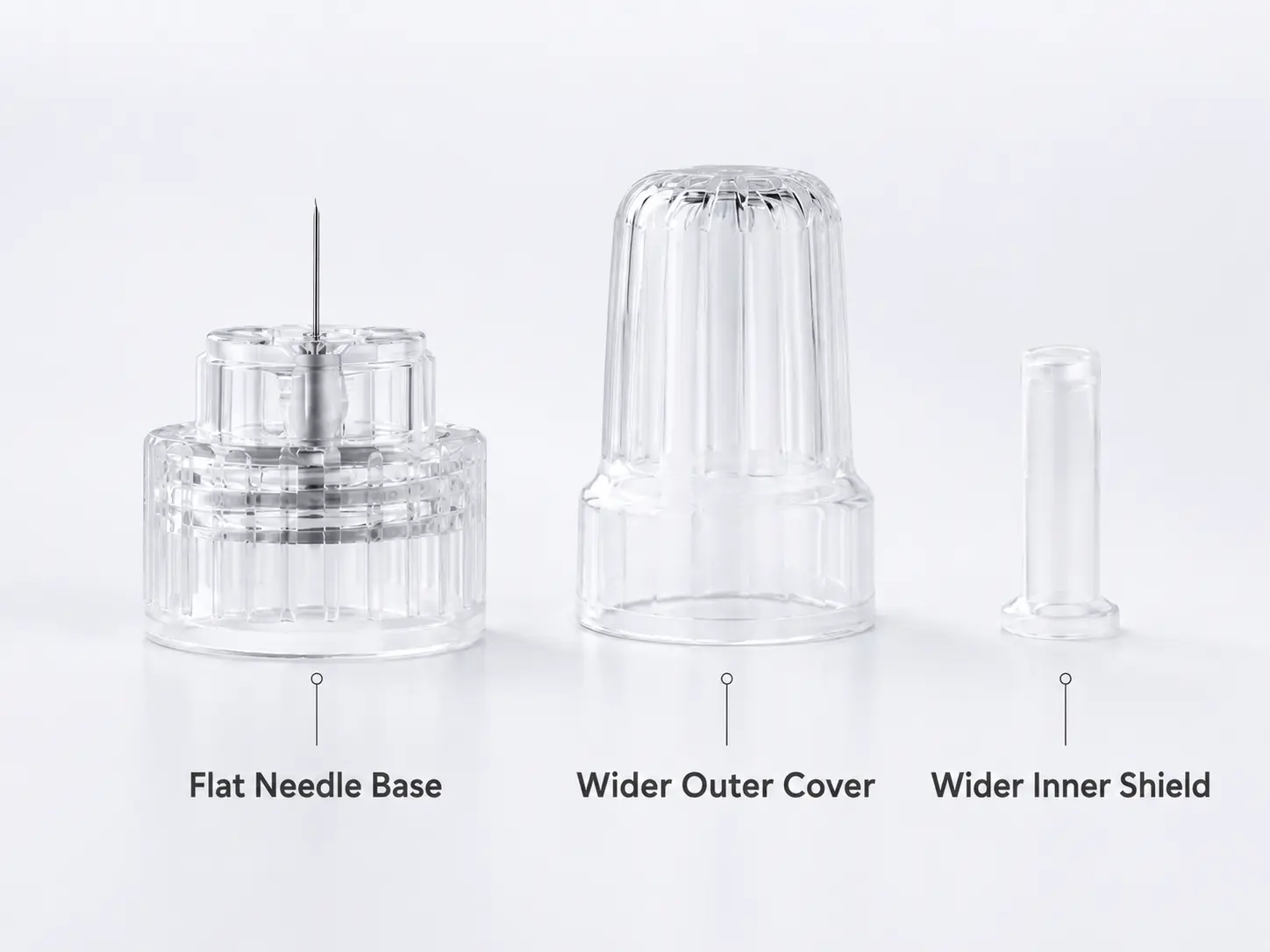

Plus insulin pen needle components showing the flat base, wider outer cover and wider inner shield
Product-family image. Confirm the exact item code and controlled product files before quotation.
Published range30G–34G

0.18–0.30 mm nominal diameters

Length range4–8 mm

Four listed length options

PresentationIndividually wrapped

Published for all 10 item codes

Unit pack100 pcs / box

Carton pack and MOQ by quotation

Published Product References

Plus SKU Matrix

These 10 rows reproduce the item-code and size combinations currently published for this family. Gauge and length must be read as one paired row.

Download buyer file SKU Matrix (.xlsx)
Published Plus insulin pen needle item codes
Item codeGauge / diameterLengthColor IDUnit presentationBox qty.
NPN-34-434G / 0.18 mm4 mmDark greenIndividually wrapped100 pcs
NPN-33-433G / 0.20 mm4 mmGreenIndividually wrapped100 pcs
NPN-32-432G / 0.23 mm4 mmLight greenIndividually wrapped100 pcs
NPN-32-532G / 0.23 mm5 mmPurpleIndividually wrapped100 pcs
NPN-32-632G / 0.23 mm6 mmBlueIndividually wrapped100 pcs
NPN-31-431G / 0.25 mm4 mmLight blueIndividually wrapped100 pcs
NPN-31-531G / 0.25 mm5 mmLight purpleIndividually wrapped100 pcs
NPN-31-631G / 0.25 mm6 mmLight blueIndividually wrapped100 pcs
NPN-31-831G / 0.25 mm8 mmOrangeIndividually wrapped100 pcs
NPN-30-830G / 0.30 mm8 mmOrangeIndividually wrapped100 pcs

Data scope: item code, gauge, nominal diameter, length, color identification, individually wrapped presentation and box quantity reproduce the public page as reviewed September 10, 2026. No separate inside code, carton quantity, MOQ, stock, lead time, compatibility list, sterile-barrier detail, UDI or certificate number is inferred.

Plus Product Structure

What the Plus Name Describes

The public distinction is the handling-component geometry shown below. Materials, dimensions and construction details still follow the selected item code and its controlled files.

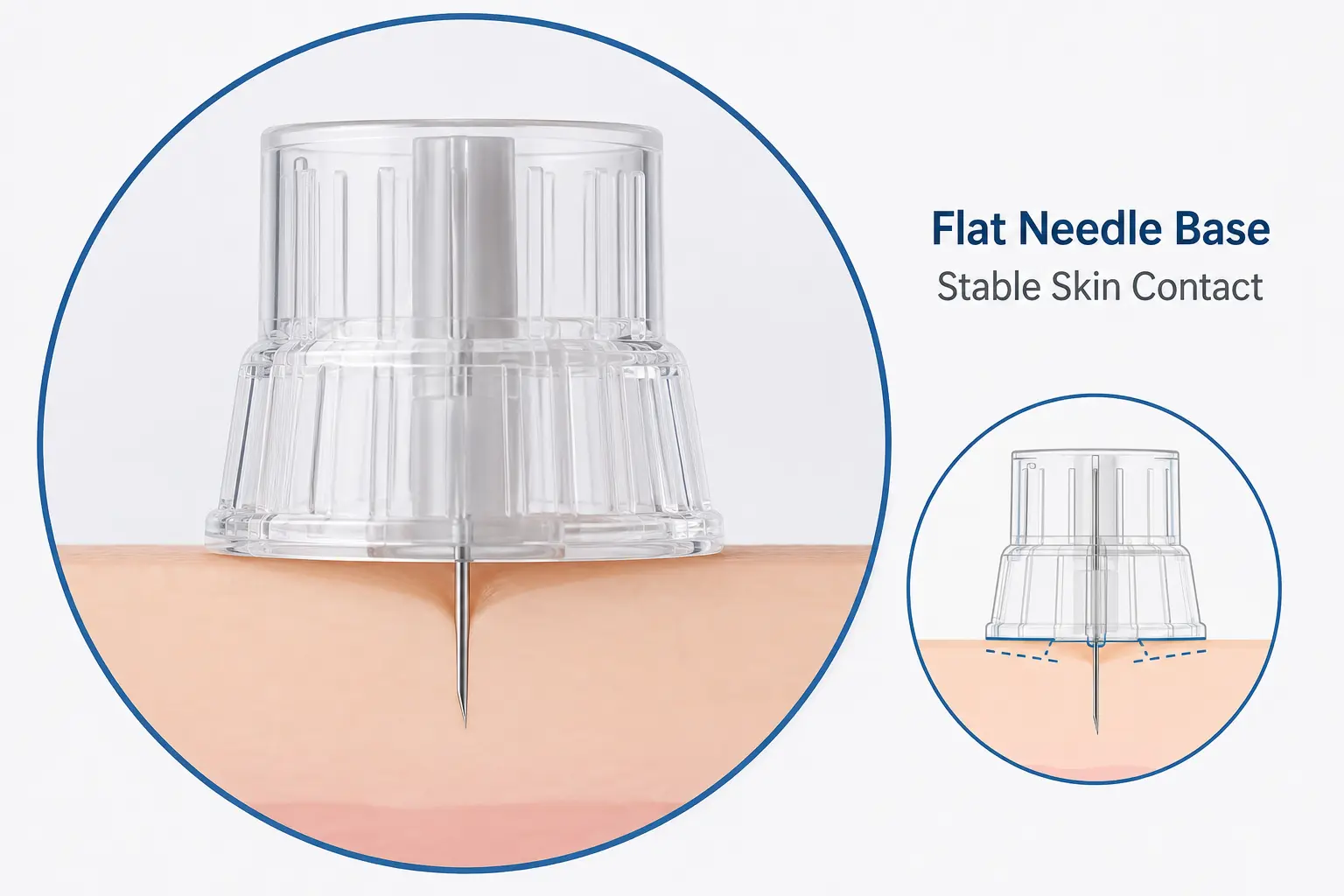

Flat needle base component on a Plus insulin pen needle
01

Flat Needle Base

The Plus configuration uses a flat base geometry around the needle hub.

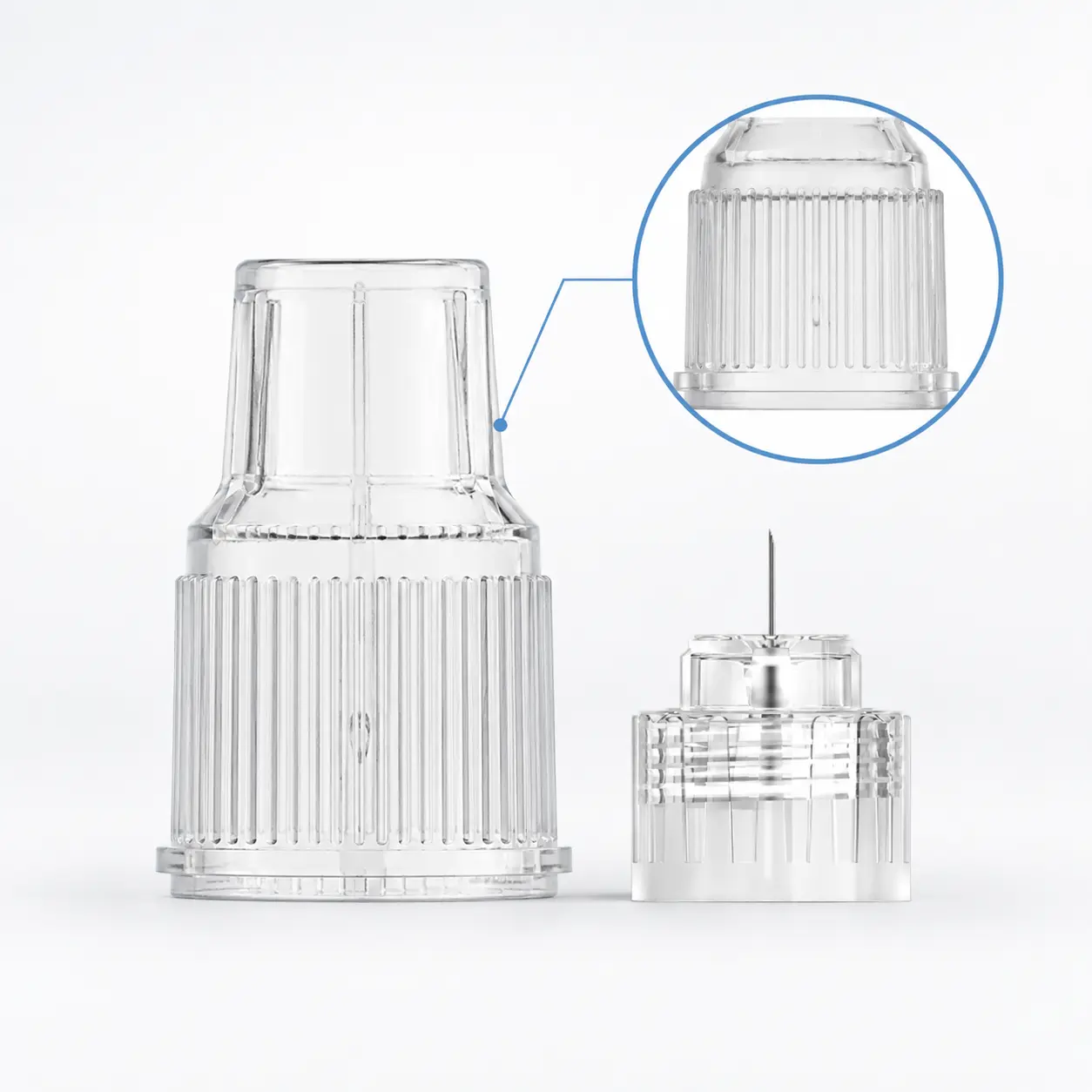

Wider outer cover on a Plus insulin pen needle
02

Wider Outer Cover

The outer cover uses a wider profile that provides a larger external handling surface.

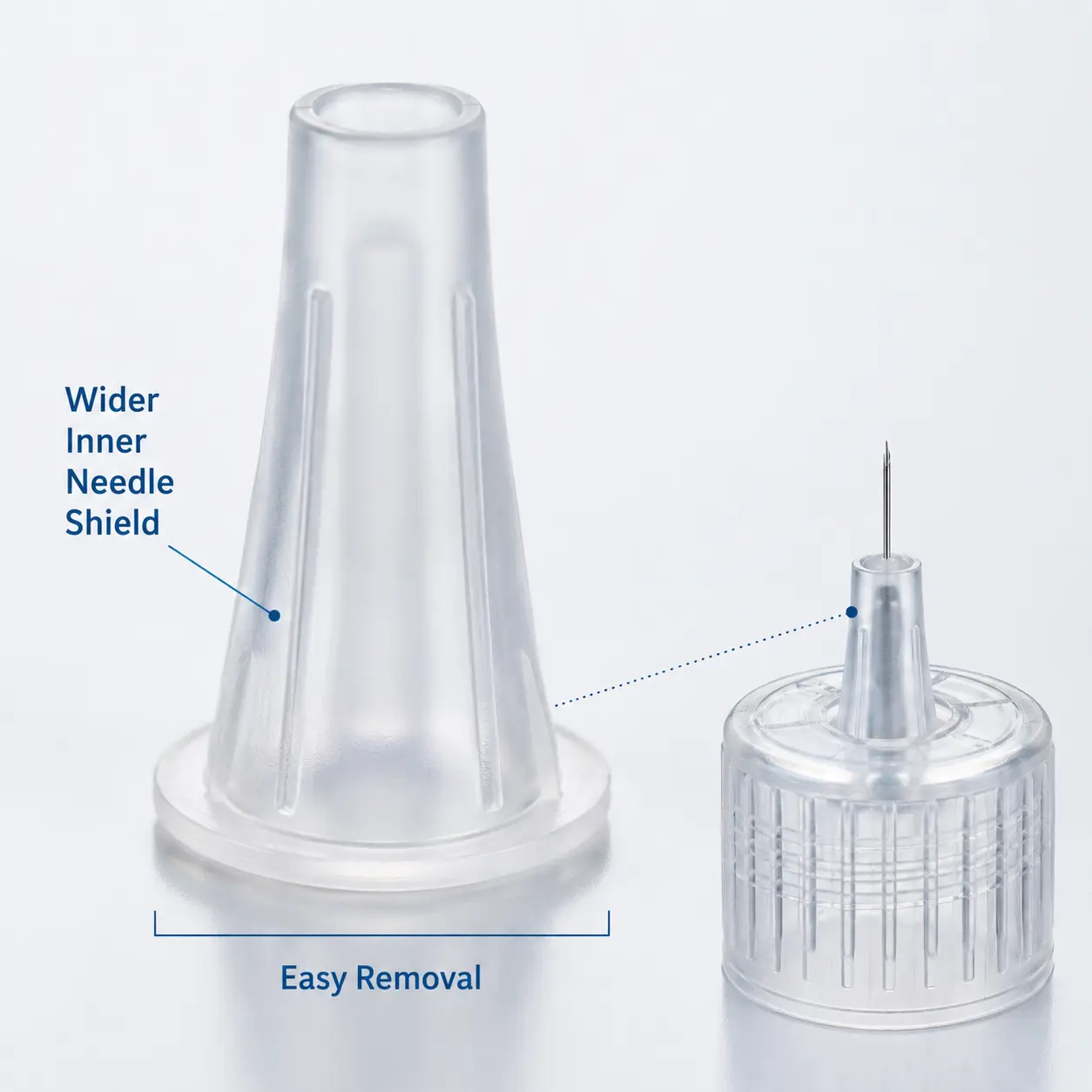

Wider inner needle shield on a Plus insulin pen needle
03

Wider Inner Shield

Selected Plus models use a wider inner-shield geometry for a larger handling surface.

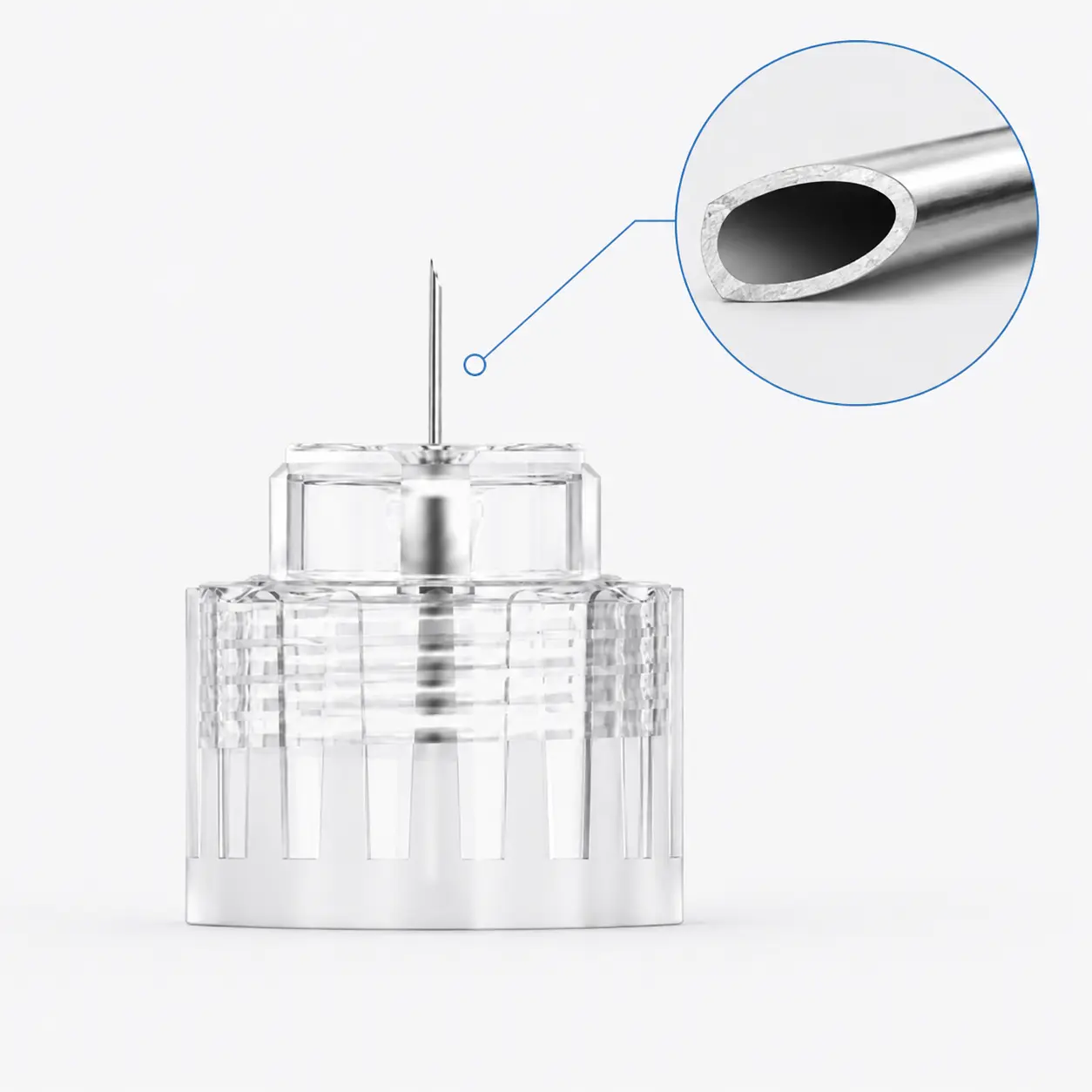

Thin-wall cannula and silicone coating detail for a selected Plus pen needle configuration
04

Selected Needle Construction

Thin-wall cannula and silicone lubricant are listed for selected configurations and must be checked by item code.

Adjacent Product Families

Compare the Published Distinction

This comparison uses the ranges and identifiers currently shown on the four Tonmit product pages. It does not establish interchangeability or pen compatibility.

Comparison of published Tonmit insulin pen needle families
FamilyPage-specific distinctionPublished rangePublished identifierReview page
StandardStandard threaded pen-needle family29G–34G · 4–12 mmIPN item codesStandard →
5-BevelModified multi-bevel needle-tip geometry29G–32G · 4–12 mmIPN REF + Q inside code5-Bevel →
PlusFlat base with wider outer cover and inner shield30G–34G · 4–8 mmNPN item codesCurrent page
Plus 5-BevelPlus handling structure with 5-bevel tip30G–32G · 4–8 mmNPN REF + Q inside codePlus 5-Bevel →

Selection boundary: family name, gauge and length do not prove compatibility. Confirm the intended pen model and the exact product file set before approving a substitution.

Buyer File Set

Packaging and Document Review

Public SKU data and quotation-specific evidence are handled separately.

Available on this page

Public SKU Data

  • 10 published NPN item codes
  • Gauge, nominal diameter and needle length
  • Color identification by listed configuration
  • Individually wrapped unit presentation
  • 100 pieces per box
Download the SKU matrix

Matched to the quotation

Files to Request by Item Code

  • Current specification sheet or product drawing
  • Unit, box and available carton packaging images or dimensions
  • Current label sample with available UDI, lot and expiry fields
  • Compatibility statement or IFU for the intended pen model
  • Sterile-barrier or sterilization statement, plus available quality and regulatory record index, where applicable
Request a product-file review
File identity check

Before relying on a requested file, match its legal manufacturer, item code/model, document number or version, issue or expiry date, and applicable market. Availability is confirmed in writing; this page does not imply that every file type applies to every item code.

Wholesale Inquiry

Request Plus Pen Needle Pricing

Submit one complete requirement. We will match the published item code, confirm commercial terms and list any remaining compatibility or documentation questions.

1

Requirement reviewSize, pen model, quantity and destination

2

Item-code matchPublished SKU, packaging and available file set

3

Written next stepPricing, MOQ, timing and open questions

Response target: initial acknowledgment within 1–2 business days.
