01 / Product family

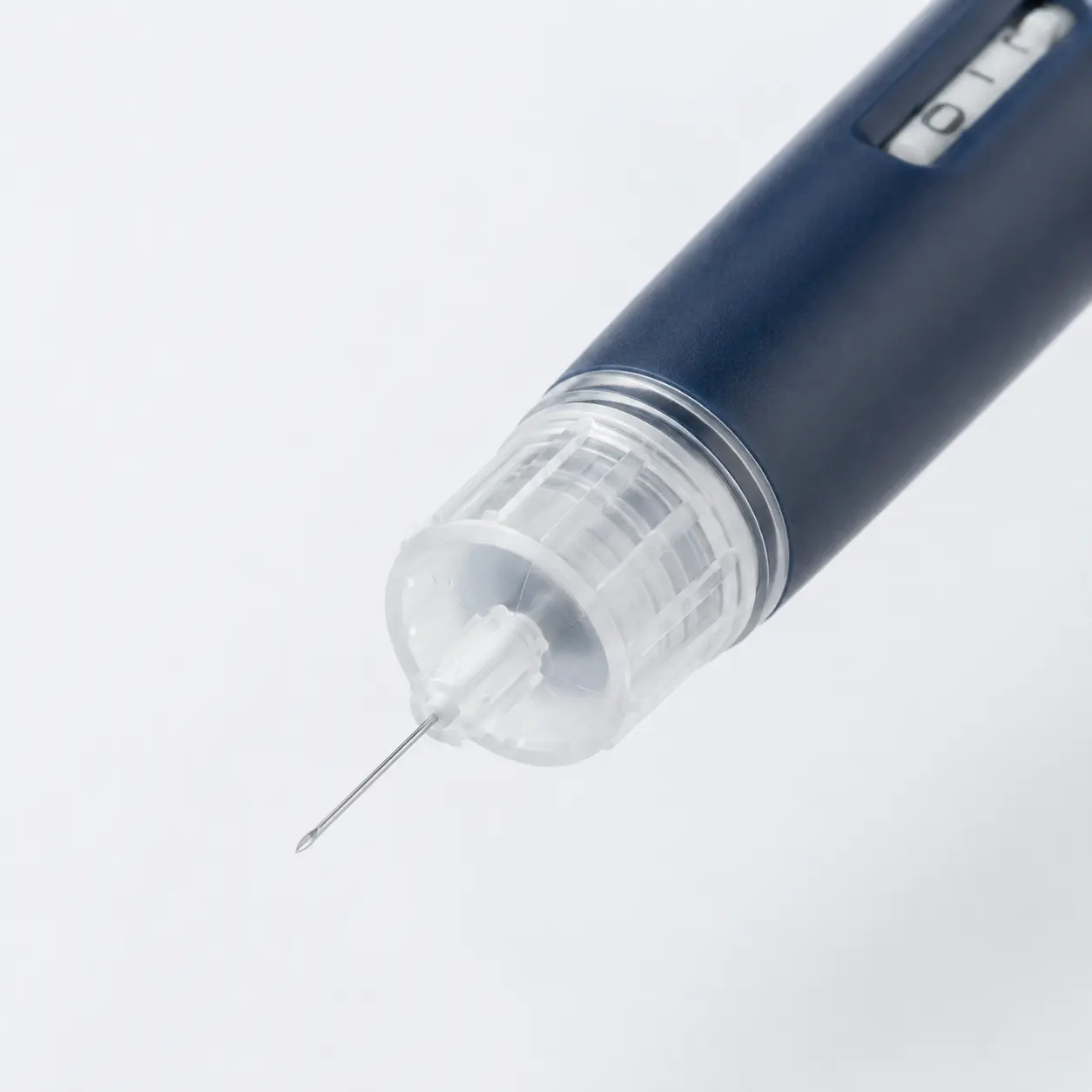

Standard Threaded Interface
The threaded hub is intended for compatible pen injector systems. Provide the pen model so we can confirm the appropriate item code.
Standard Threaded Product Family

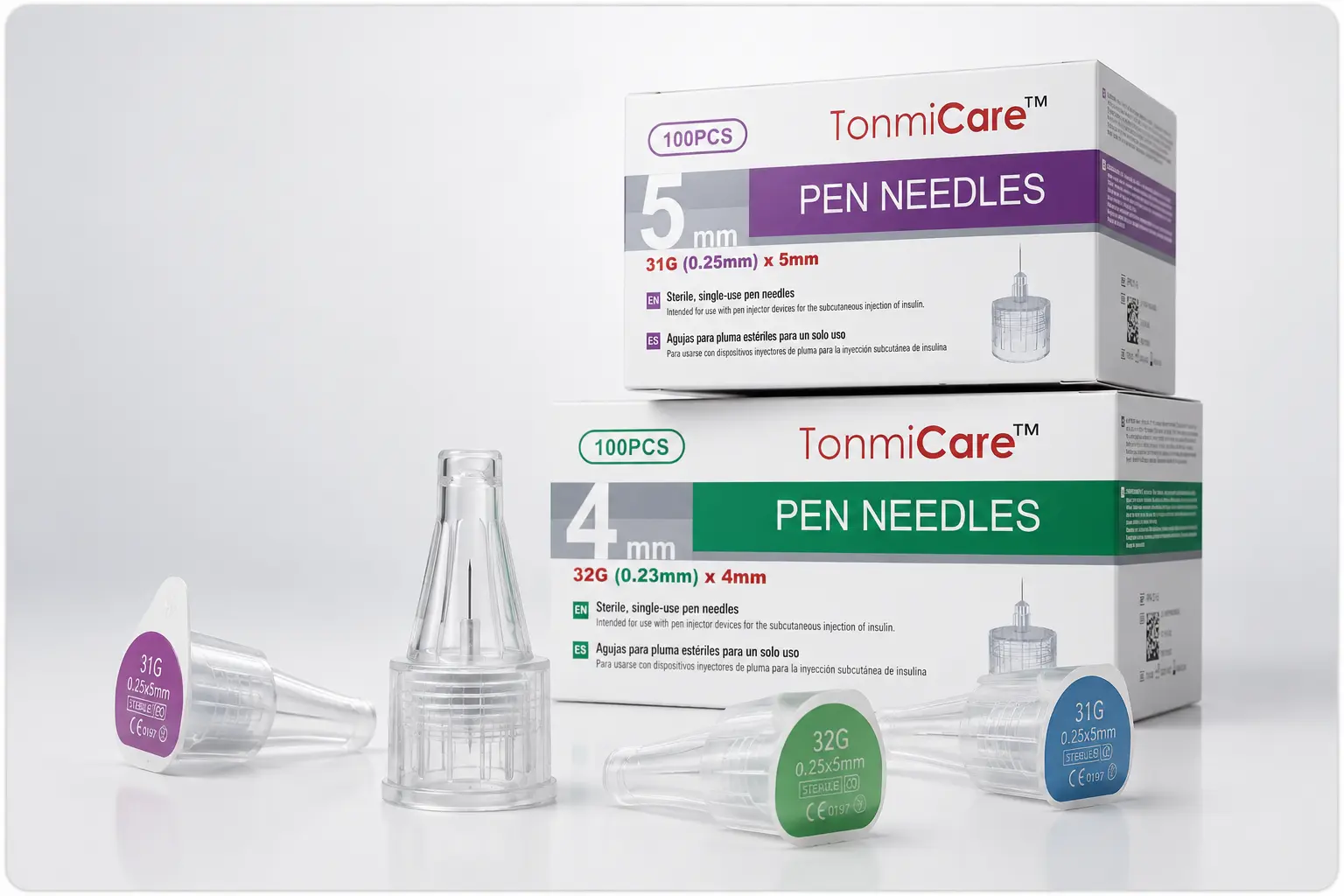

Standard Insulin Pen Needles
Eleven item codes cover 29G–34G and 4–12 mm. The listed configurations use our standard threaded interface and a sterile, individually wrapped presentation with 100 pieces per box.
Standard threaded pen-needle family
For an exact quotation, provide the item code—or gauge × length—plus the intended pen model, quantity and destination.
Available item codes11 configurations
Listed in the SKU matrix below
Gauge range29G–34G
0.18–0.33 mm nominal diameters
Length range4–12 mm
4, 5, 6, 8 and 12 mm options
Unit presentation100 pcs / box
Sterile and individually wrapped

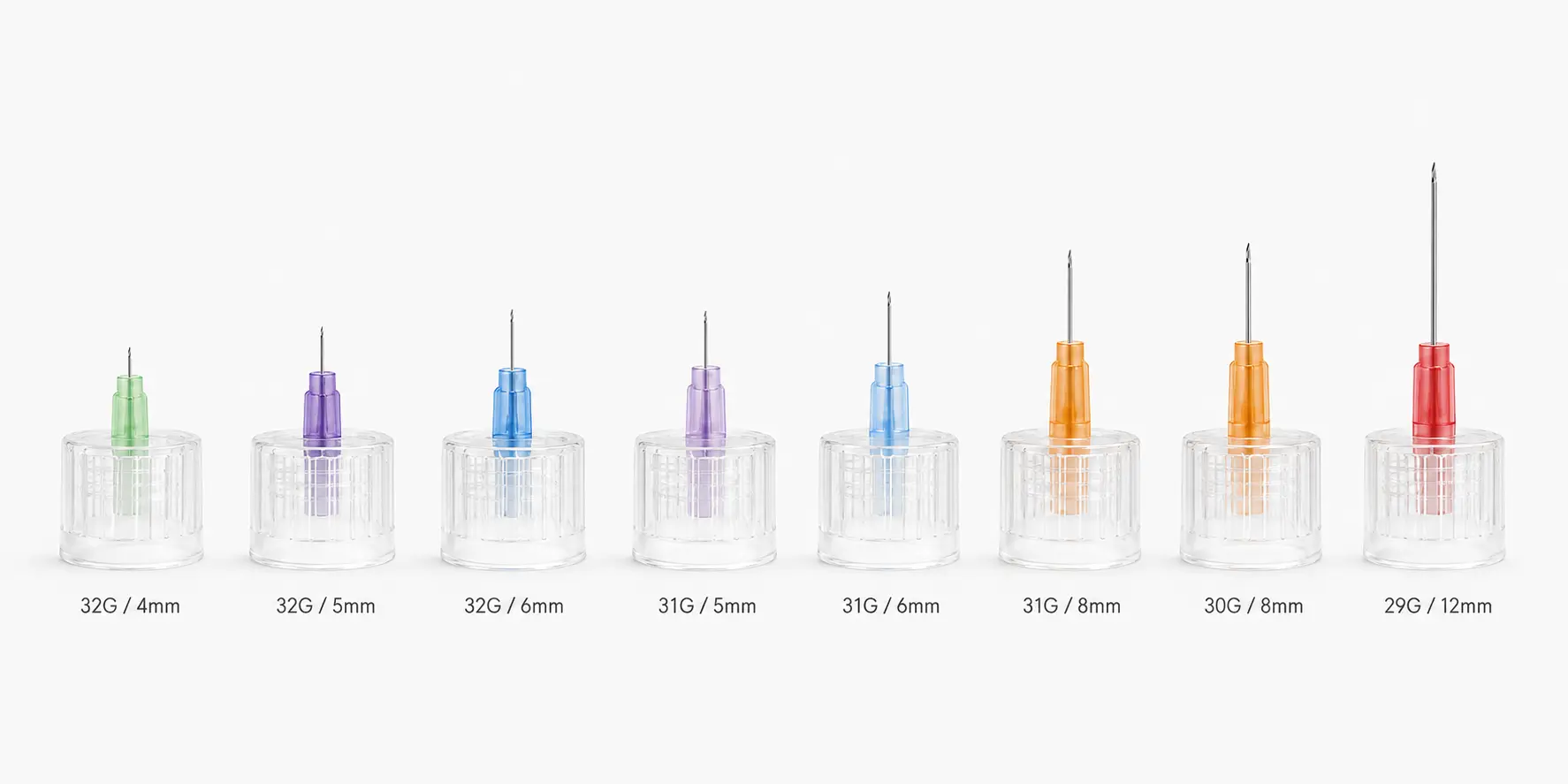

Available Configurations
Standard Pen Needle Specifications
Select the item code that matches the required gauge and length. Color identification is included to support product and packaging review.
| Item code | Gauge / diameter | Length | Color ID | Presentation | Box qty. |
|---|---|---|---|---|---|
| IPN-34-4 | 34G / 0.18 mm | 4 mm | Green | Sterile, individually wrapped | 100 pcs |
| IPN-33-4 | 33G / 0.20 mm | 4 mm | Green | Sterile, individually wrapped | 100 pcs |
| IPN-32-4 | 32G / 0.23 mm | 4 mm | Light green | Sterile, individually wrapped | 100 pcs |
| IPN-32-5 | 32G / 0.23 mm | 5 mm | Purple | Sterile, individually wrapped | 100 pcs |
| IPN-32-6 | 32G / 0.23 mm | 6 mm | Blue | Sterile, individually wrapped | 100 pcs |
| IPN-31-4 | 31G / 0.25 mm | 4 mm | Light blue | Sterile, individually wrapped | 100 pcs |
| IPN-31-5 | 31G / 0.25 mm | 5 mm | Light purple | Sterile, individually wrapped | 100 pcs |
| IPN-31-6 | 31G / 0.25 mm | 6 mm | Light blue | Sterile, individually wrapped | 100 pcs |
| IPN-31-8 | 31G / 0.25 mm | 8 mm | Orange | Sterile, individually wrapped | 100 pcs |
| IPN-30-8 | 30G / 0.30 mm | 8 mm | Orange | Sterile, individually wrapped | 100 pcs |
| IPN-29-12 | 29G / 0.33 mm | 12 mm | Red | Sterile, individually wrapped | 100 pcs |
Ordering note: the table shows the standard configurations currently listed on this page. Carton quantity, MOQ, samples, stock and lead time are confirmed with the quotation.
Standard Product Design
What Standard Means on This Page
This family uses a standard threaded pen-needle interface. Final compatibility is checked against the intended pen model and selected item code.
02 / Needle detail

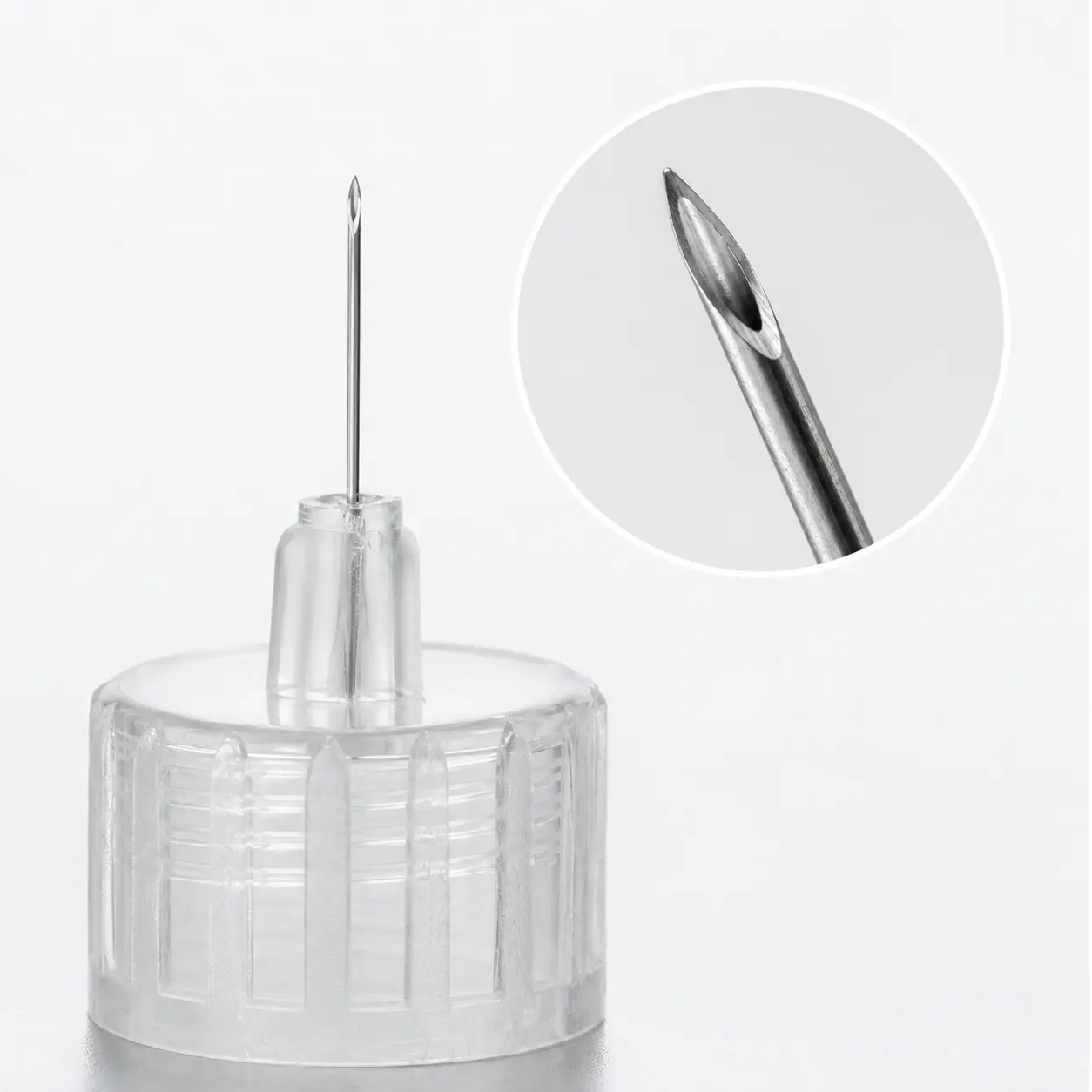

Precision-Formed Needle Tip
Needle-tip construction follows the product specification assigned to the selected item code.
03 / Available option

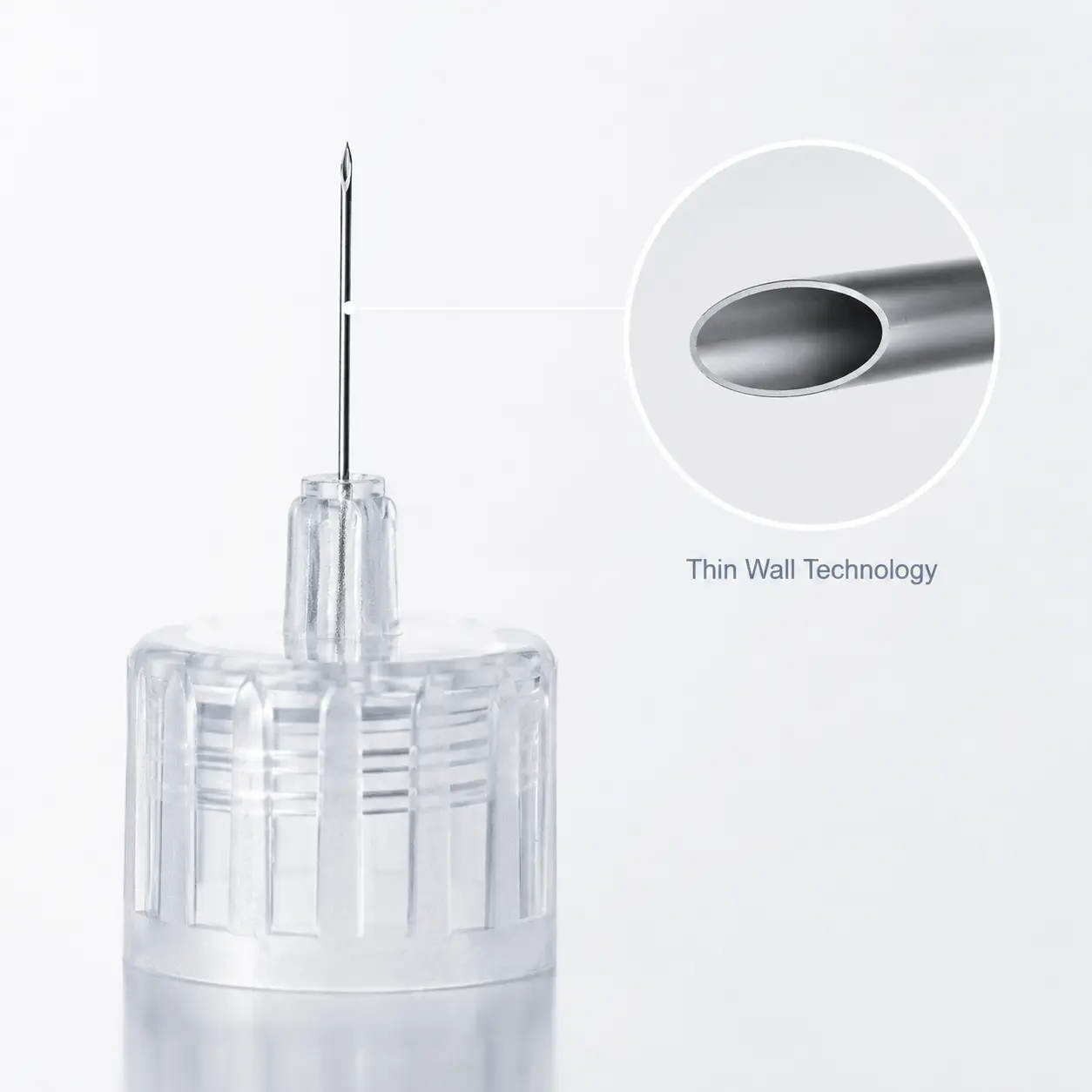

Thin-Wall Construction
Thin-wall construction is available on selected configurations and can be confirmed during quotation.
04 / Product detail

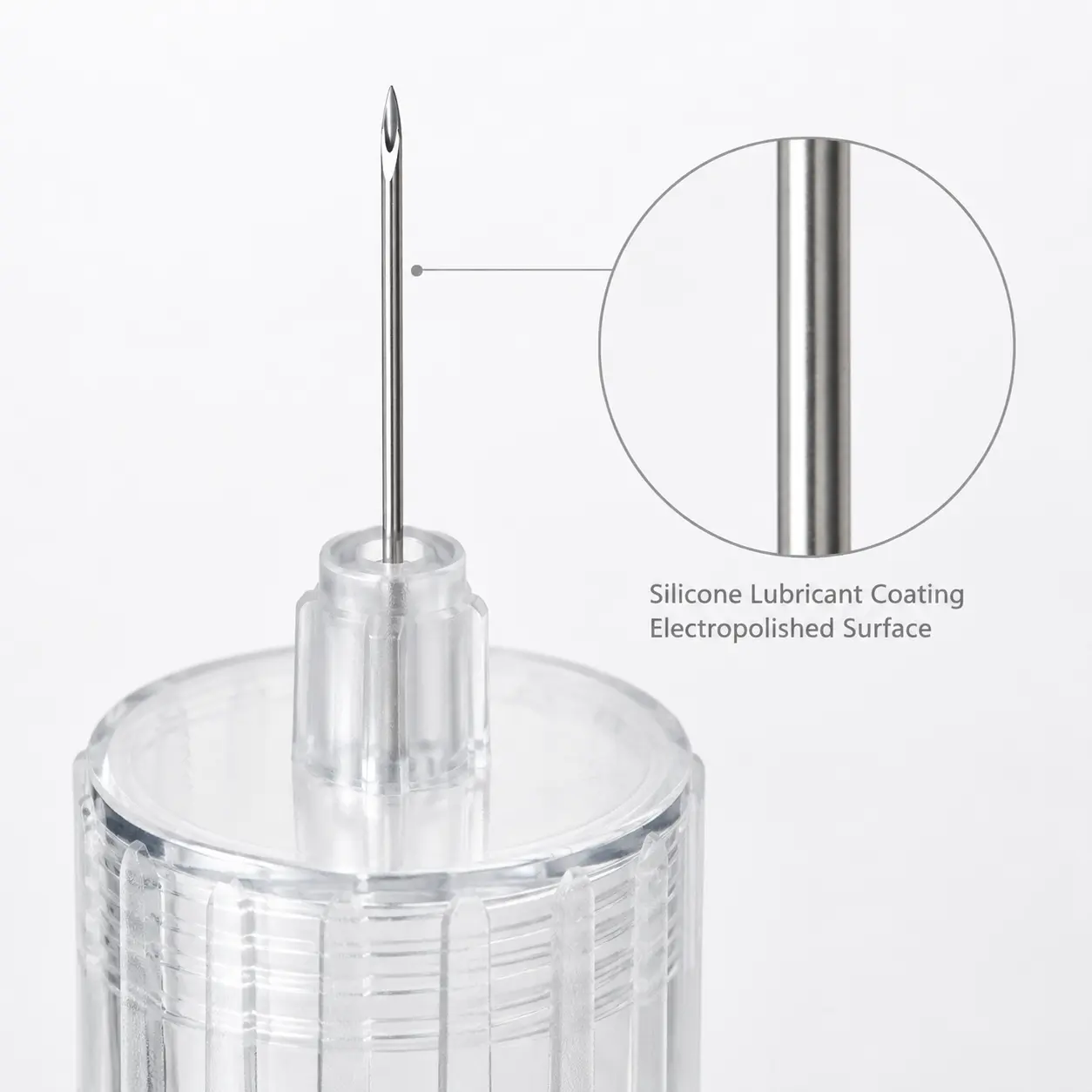

Lubricated Needle Surface
Applicable configurations use a lubricated needle surface as part of the finished product construction.
Related Product Families
Compare Tonmit Pen Needle Families
Compare the main family differences, gauge ranges and item-code formats before selecting the required size.
| Family | Main difference | Gauge × length range | Identifier pattern | Review page |
|---|---|---|---|---|
| Standard | Standard threaded pen-needle family | 29G–34G · 4–12 mm | IPN item code | Current page |
| 5-Bevel | 5-bevel needle-tip geometry | 29G–32G · 4–12 mm | IPN REF + Q inside code | 5-Bevel → |
| Plus | Flat base, wider outer cover and wider inner shield | 30G–34G · 4–8 mm | NPN item code | Plus → |
| Plus 5-Bevel | Plus handling structure with 5-bevel tip | 30G–32G · 4–8 mm | NPN REF + Q inside code | Plus 5-Bevel → |
Compatibility: provide the intended pen model with your inquiry. We will review it together with the selected family, gauge and length.
Ordering and Documentation
Confirm Packaging, Availability and Documents
For U.S.-market supply, available product and regulatory documents are matched to the selected item code. The quotation confirms packaging, stock status, lead time and the documents available for the destination market.
Available on this page
Product Information
- Eleven listed item codes
- Gauge, nominal diameter and needle length
- Color identification by listed row
- Sterile, individually wrapped presentation
- 100 pieces per box
Available on request
Product and Regulatory Files
- Product specification sheet or drawing
- Unit box and available carton packaging images
- Current label example, including UDI, lot and expiry fields where applicable
- Sterilization and sterile-barrier information
- Applicable regulatory and quality documents for the destination market
| Purchasing field | Current page status | How it is confirmed |
|---|---|---|
| Unit pack | 100 pcs / box | Listed for all 11 configurations |
| Carton quantity | RFQ confirmation | Match the item code, packaging route and destination |
| MOQ and samples | RFQ confirmation | Review stock, customization and requested quantity |
| Stock status | RFQ confirmation | Checked against current inventory for the selected item code |
| Lead time | RFQ confirmation | Destination, inventory and transport route |
| Compatibility and files | Item-code review | Confirm the intended pen model and requested documents |
Wholesale Inquiry
Request Standard Pen Needle Pricing
Send the required size, pen model, quantity and destination. We will confirm the matching item code, pricing, packaging and available documentation.
Response target: initial acknowledgment within 1–2 business days.
